Model:
SDN
Brand:
DLL

Product Description

Specification

Specification:

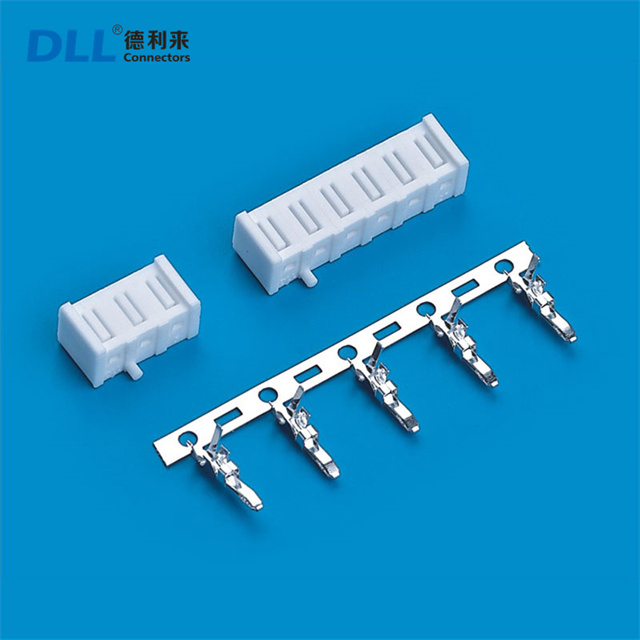

3.96mm Pitch Connectors,Crimp Style Board-in type Connectors;3.96mm Pitch Crimp Style Board-in type Connectors

Rated Voltage:	250V AC,DC
Rated current:	5A AC,DC
Contact resistance:	10MΩ max
Insulation Resistance:	1000MΩ min
Withstand Voltage:	1500V AC/minute
Temperature:	-25℃~+85℃

Material:

Housing:	(Nylon)UL94-V0(2)
Terminal:	Phosphor Bronze,Tin Plated

Product Description

Drawing:

Our company has powerful research and development ability,we can open mold,develop and produce the products you want!

More Products For You To Choose:

Application

Signal transmission: In electronic devices, terminal connectors can accurately transmit various electronic signals such as audio, video, digital signals, etc., ensuring normal communication and collaborative work between devices. For example, in the connection between a computer and a monitor, the image and sound signals output by the computer can be stably transmitted to the monitor through specific terminal connectors, thereby achieving image display and sound playback

Transmission of electricity: Used to transmit electricity and provide the necessary electrical energy for electronic devices. In household appliances, the connection between power plugs and sockets is a common application of terminal connectors, which can safely and effectively transmit mains electricity to electrical equipment, ensuring its normal operation

Connecting circuit: It is a bridge that connects different circuits or electronic components, allowing independent circuits to be interconnected and form a complete electrical system. For example, on a circuit board, various terminal connectors connect different electronic components such as resistors, capacitors, chips, etc. together to construct complex circuit functions.

SDN-21T-P1.5 3.96mm Pitch Crimp Style Board-in type Connectors SDN-21T-P1.5 3.96mm Pitch Crimp Style Board-in type Connectors SDN-21T-P1.5 3.96mm Pitch Crimp Style Board-in type Connectors SDN-21T-P1.5 3.96mm Pitch Crimp Style Board-in type Connectors SDN-21T-P1.5 3.96mm Pitch Crimp Style Board-in type Connectors

3.96mm Pitch Connectors Crimp Style Board-in type Connectors 3.96mm Pitch Crimp Style Board-in type Connectors 3.96mm Pitch Board-in type Connectors 3.96mm Pitch Crimp Style Connectors SDN-21T-P1.5 3.96mm Pitch Crimp Style Board-in type Connectors
