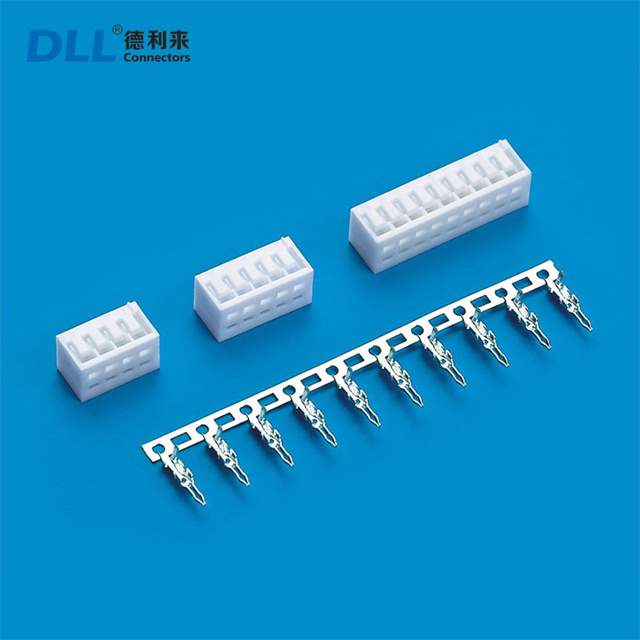

replace jst scnd series 2.5MM PITCH wire to board DIP connector

replace scnd series 2.5MM PITCH wire to board DIP connector,jst scnd series 2.5MM PITCH wire to board DIP connector,scnd series 2.5MM PITCH wire to board DIP connector,replace scnd series wire to board DIP connector,jst scnd series wire to board DIP connector
Availability:
Quantity:
Inquire Add to Basket

  • SCND

  • DLL

Specification



SPECIFICATION

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD

Rated Voltage:

   250V AC,DC

Rated current:

   3A  AC,DC

Contact resistance:

   20MΩ max

Insulation Resistance:

   1000MΩ min

Withstand Voltage:

   1000V AC/minute

Temperature:

   -25℃~+85℃



Material



MATERIAL

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD

Wafer:

(Nylon)UL94-V0(2)

Housing:

(Nylon)UL94V-0(2)

Terminal:

Phosphor bronze,Tin plated



Drawing

DRAWING

DELI

ZHEJIANG DELI CONNECTORS CO.,LTD



scnd series 2.5MM PITCH wire to board DIP connector

More Products For You To Choose:

Application

Quality of Wire Attachment
The way the wires are attached to the connector also affects its durability. The JST SCND series connectors usually support reliable wire - attachment methods such as crimping or soldering. In a crimp - type connection, the wire is inserted into a terminal and then mechanically crimped. The crimping process creates a strong bond between the wire and the connector, which can withstand the forces exerted during insertions and removals. The crimped connection is also less likely to loosen over time, ensuring a stable electrical connection throughout the life of the connector.
Soldering, on the other hand, provides an even more permanent and reliable wire - attachment method. When the wire is soldered to the connector's terminal, a metallurgical bond is formed. This bond is highly resistant to mechanical stress and can maintain a stable electrical connection even after numerous insertions and removals. The soldered connection also offers excellent electrical conductivity, which is beneficial for signal and power transmission.


replace jst scnd series 2.5MM PITCH wire to board DIP connector      replace jst scnd series 2.5MM PITCH wire to board DIP connector       replace jst scnd series 2.5MM PITCH wire to board DIP connector      replace jst scnd series 2.5MM PITCH wire to board DIP connector     replace jst scnd series 2.5MM PITCH wire to board DIP connector
