replace ket mg640 MG64060 8.0-6.0mm pin header connector

replace mg640 8.0-6.0mm pin header connector,ket mg640 8.0-6.0mm pin header connector,mg640 8.0-6.0mm pin header connector,replace mg640 8.0-6.0mm connector,ket mg640 pin header connector
MODEL:
MG640-3A
Availability:
Quantity:
Inquire Add to Basket

  • MG640

  • DLL

Product Description

Specification:

replace mg640 8.0-6.0mm pin header connector;ket mg640 8.0-6.0mm pin header connector

Rated Voltage:    300V AC,DC
Rated current:    15A AC,DC
Contact resistance:    20MΩ max
Insulation Resistance:    1000MΩ min
Withstand Voltage:    1500V AC/minute
Temperature:    -25℃~+85℃



Material:



Terminal: Phosphor bronze,Tin plated
Wafer: (Nylon)UL94-V0(2)
Housing: (Nylon)UL94-V0(2)



Drawing:

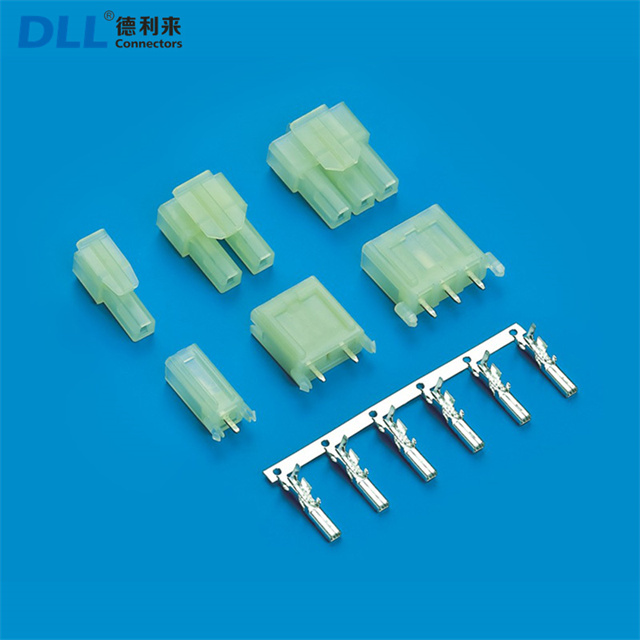

 MG640

MG640 Series 8.0-6.0mm pitch MG640598 MG640595 MG640608 Wire To Board Dip ConnectorMG640 Series 8.0-6.0mm pitch MG640598 MG640595 MG640608 Wire To Board Dip ConnectorMG640 Series 8.0-6.0mm pitch MG640598 MG640595 MG640608 Wire To Board Dip Connector


Our company has powerful research and development ability,we can open mold,develop and produce the products you want!

More Products For You To Choose:




Application

Shell material and durability: The shell is generally made of high-strength, wear-resistant engineering plastics such as PA66. This material has good mechanical properties, can withstand a certain degree of external impact and compression, and is not easily broken or deformed. In practical use, even if the connector is subjected to certain mechanical collisions or vibrations, the housing can still provide good protection, ensuring that the internal pins and contact structures are not damaged.
Pin fixation and stability: The pin fixation method inside the housing has been carefully designed, using structures such as snap springs and slots to firmly fix the pin in the housing, making it less likely to loosen or shift. In this way, during the insertion and extraction process or when subjected to mechanical stress, the pins can maintain a stable position, ensuring good contact with the corresponding terminals and avoiding poor contact or damage caused by pin shaking.


replace ket mg640 MG64060 8.0-6.0mm pin header connector       replace ket mg640 MG64060 8.0-6.0mm pin header connector       replace ket mg640 MG64060 8.0-6.0mm pin header connector          replace ket mg640 MG64060 8.0-6.0mm pin header connector        replace ket mg640 MG64060 8.0-6.0mm pin header connector
