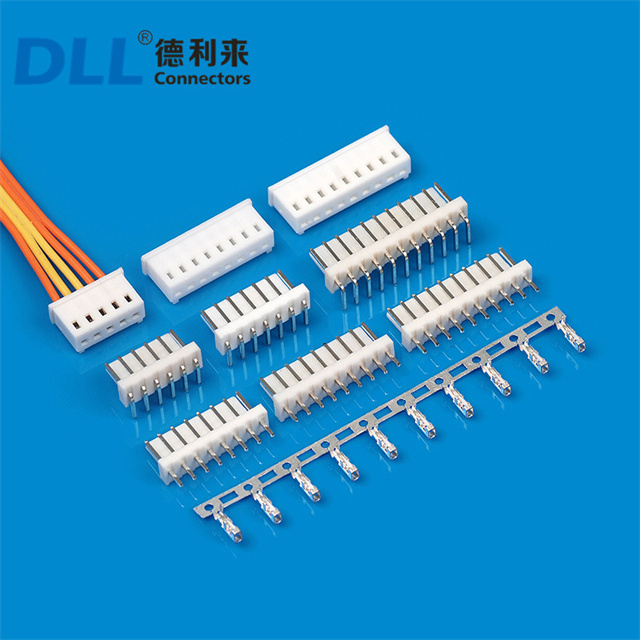

replace molex 2510 2204-1071 2204-1081 2.54mm pin wafer connector

replace 2510 2.54mm pin wafer connector,molex 2510 2.54mm pin wafer connector,2510 2.54mm pin wafer connector,replace 2510 pin wafer connector,molex 2510 pin wafer connector
MODEL:
2510-7A
2510-8A
Availability:
Quantity:
Inquire Add to Basket

  • 2510

  • DLL

Product Description
  Specification:

 replace 2510 2.54mm pin wafer connector;molex 2510 2.54mm pin wafer connector

Rated Voltage:    250V AC,DC
Rated current:    3A AC,DC
Contact resistance:    20MΩ max
Insulation Resistance:    1000MΩ min
Withstand Voltage:    1000V AC/minute
Temperature:     -25℃~+85℃
Wire Range:     AWG#28~#22



Material:



Housing: (Nylon)UL94-V0(2)
Terminal: Phosphor Bronze,Tin Plated
Wafer: (Nylon)UL94-V0(2)



Drawing:



equivalent 2510 2.54mm pitch 22-04-1031 22-04-1021 22-04-1041 22-04-1051 dip connector


Our company has powerful research and development ability,we can open mold,develop and produce the products you want!

More Products For You To Choose:


Application

Electrical Performance
These connectors have a current rating of 3A AC/DC, which provides sufficient power handling capacity for a wide range of applications. When upgrading or expanding a device, you can be confident that the Molex 2510 connectors can support the additional power requirements of new components or subsystems. For example, if you are adding a more powerful processor or a new set of sensors to a device, the connectors can handle the increased current draw.
The maximum contact resistance of 10 mΩ ensures efficient power and signal transfer. In an expanded or upgraded device, where the number of components and connections may increase, maintaining low contact resistance is crucial for reliable operation. It helps to minimize power losses and signal degradation, ensuring that all components receive the necessary power and signals accurately.


replace molex 2510 2204-1071 2204-1081 2.54mm pin wafer connector             replace molex 2510 2204-1071 2204-1081 2.54mm pin wafer connector         replace molex 2510 2204-1071 2204-1081 2.54mm pin wafer connector             replace molex 2510 2204-1071 2204-1081 2.54mm pin wafer connector
